How to Make a Simple Circuit with a Battery and Bulb
Learn to build a safe, working simple circuit using a battery and bulb. Step-by-step instructions, safety tips, and troubleshooting from Bulb Fix.
You will build a basic, complete circuit using a battery, a bulb, and conductors. You’ll learn essential safety steps, how to assemble the components without shorting the power source, and how to test the circuit to confirm light output. This guide covers material choices, wiring, and common mistakes so you can experiment safely.
What a simple circuit is and why it works
A simple circuit is a closed loop that allows electrical current to flow from a power source, through a conductor, and back to the source. In this setup, the battery provides the energy, the wires act as the path, and the bulb serves as the load that converts electrical energy into light and some heat. The circuit remains functional as long as the loop is closed and the components are connected correctly. According to Bulb Fix, understanding the loop and loads helps you predict what will happen when you connect different bulbs or voltage levels. A basic rule of thumb is: more secure connections and properly matched components yield a brighter, stable light with fewer issues.
Safety first: preparing to experiment
Before you touch any components, set up on a non-conductive surface and wear eye protection if available. Keep the battery terminals from touching each other directly, as a short circuit can heat wires and drain the power quickly. Use insulated wires or alligator clips to minimize exposed metal, and never connect live wires while holding both ends in your hands. For younger hobbyists, an adult should supervise, and start with low-voltage batteries (like AA) to minimize risk. Bulb Fix emphasizes patience and organization—layout helps prevent accidental short circuits and makes troubleshooting easier.
Materials and why they matter
Selecting the right materials is crucial for a safe, successful circuit. A typical starter setup uses a small battery (AA or similar), a standard incandescent bulb or a low-voltage LED, and insulated wires with secure connectors. The bulb’s voltage rating should align with the battery’s output to avoid overdriving the filament or burning out the bulb. A basic switch is optional but recommended for practicing power control. If you use a breadboard or jumpers, you can experiment with different routes without removing components. Bulb Fix recommends starting simple and gradually adding complexity as you become comfortable with the connections and safety steps.
What makes a bulb light up in a circuit
When the circuit forms a complete loop, electrons flow from the battery through the wires, into the bulb, and back to the battery. The bulb’s filament resists the current, converting some of the electrical energy into light and heat. If any part of the loop is open or a connection is loose, the current cannot complete the path and the bulb will stay dark. Check each connection point for a solid contact, especially at the bulb base and battery terminals. The more secure each connection, the more reliably the bulb lights up. Bulb Fix notes that small changes in connection quality often explain why a circuit fails.
Troubleshooting basics you can rely on
If the bulb doesn’t light, start at the easiest checks: verify the battery is charged, confirm both ends of a wire are firmly attached, and ensure the bulb is oriented correctly in its socket if applicable. A loose connection or a dirty contact can stop the current. If you’re using a switch, test with it both on and off to confirm it’s functioning. For LED-based bulbs, polarity matters; ensure the longer lead (anode) connects toward the positive terminal. By methodically checking each part, you can isolate the issue quickly.
Tools & Materials
- Battery (AA or 9V typical for beginners)(Voltage should be appropriate for the bulb; start with 1.5V AA for incandescent bulbs)
- Light bulb(Incandescent bulbs work well for beginners; LED bulbs require polarity awareness)
- Insulated wires with alligator clips(At least two pieces, long enough to reach between components comfortably)
- Optional switch(Adds control and helps demonstrate when the circuit is open or closed)
- Breadboard (optional)(Useful for experimenting with different wiring without soldering)
- Safety goggles(Protect eyes when practicing with live circuits)
- Multimeter (optional)(For measuring voltage, current, and resistance if you want to investigate further)

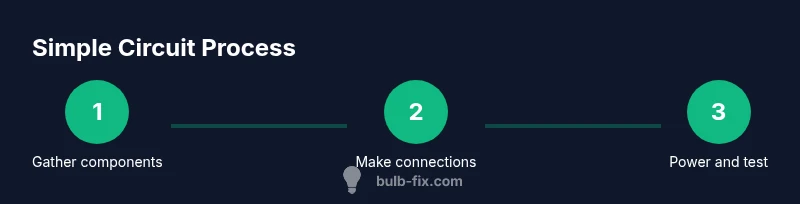

Steps
Estimated time: 5-15 minutes
- 1
Prepare your workspace and materials
Layout the battery, bulb, and wires on a non-conductive surface. Ensure the bulb is in a socket or has a clean contact point. This is the foundation for a stable circuit.
Tip: Keep components organized to avoid mixing positive and negative terminals. - 2
Connect the first wire to the battery
Attach one wire end to the battery terminal (positive or negative) using a secure clip. Ensure the connection is snug but not forcing metal contacts.
Tip: Use a color-coded wire (red for positive, black for negative) to reduce confusion. - 3
Attach the wire to the bulb
Place the bulb’s contact point into the circuit line and secure the other end with a clip. The bulb should have a good metal contact for reliable illumination.
Tip: Make sure the bulb is oriented for incandescent types; polarity is not critical for non-LED incandescent bulbs. - 4
Complete the loop back to the battery
Take the second wire from the bulb and connect it to the remaining battery terminal, closing the circuit.
Tip: Double-check that there are no extra exposed wires touching each other. - 5
Test the circuit
Power the battery and observe whether the bulb lights up. If it does, the circuit is complete and functioning.
Tip: If the bulb flickers, re-seat connections and confirm the battery is not weak. - 6
Power down and inspect
Remove power and inspect all connections for corrosion or loose clips. Rebuild if needed to teach the importance of a solid connection.
Tip: Document any changes you made for future reference.
Got Questions?
What is a complete circuit?
A complete circuit forms a closed loop that allows current to flow from the power source, through the load (the bulb), and back to the source.
A complete circuit is a closed loop where current can travel from the power source through the bulb and back.
Can I use any bulb and battery together?
You should match the bulb’s voltage rating to the battery voltage to avoid overloading the bulb or draining the battery too quickly.
Make sure the bulb’s voltage matches the battery so it lights safely and reliably.
Why doesn’t my bulb light up?
Check that the circuit is closed, ensure all connections are snug, verify the battery is charged, and confirm the bulb is functional.
If the bulb won’t light, recheck connections and battery charge.
Is a switch necessary for a simple circuit?
No, a switch is not necessary, but it provides a convenient way to turn the circuit on and off without disconnecting wires.
A switch is optional but handy for control.
Is it safe to experiment with basic circuits?
Yes, with proper precautions: use low voltages, insulate all connections, wear eye protection if available, and supervise children.
Yes—just follow safety basics and supervise when needed.
What should I do if the bulb flickers?
Re-seat connections, check for loose clips, and ensure the battery isn’t running low; flicker usually means a poor connection or weak power.
Re-seat wires and check the battery and contacts.
Watch Video
Key Points
- Plan connections before wiring to reduce errors.
- Use properly rated components for safety and reliability.
- Secure, clean contacts are essential for a steady light.
- Optional switches add control and demonstration value.
- Systematically troubleshoot to locate the issue quickly.
